16 / 24 Prism 5r 200W Beam Moving Head Light

Light Source: Philips Msd Platinum 5r
Material: Aluminum Alloy
Emitting Color: Changeable
Control Channel: 16CH or 20CH
Strobe: Combined Type Double Strobe
Control Mode: Dmx Signal Control

Products Details

Basic Info.

Model NO.
UP-B200MI
IP Rating
IP20
Certification
CE, RoHS
Voltage
AC110~240V
Prism
8-Faced Prism with Zoom
Gobo
17 Fixed Gobos + Open
Color
14 Colors + Open
Igniter
Original Philips Igniter
Transport Package
1. Corton 2. Flycase
Specification
CE RoHS
Trademark
UPlight or OEM
Origin
Guangzhou, China
HS Code
94054090
Production Capacity
1000 Pieces/Month

Product Description

16 /24 Prism 5r 200W Beam Moving Head Light

Youtube  Beam Demo
https://youtu.be/9ILMNZMzj-Q
https://youtu.be/-UZwem5vDlI

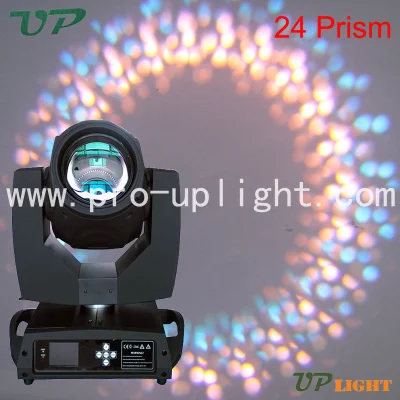

24 Prism
16 / 24 Prism 5r 200W Beam Moving Head Light
Beam Effect
16 / 24 Prism 5r 200W Beam Moving Head Light

Input voltage: 100-240V, 50/60Hz;
Machine Power: 350W;
Light source: Philips MSD Platinum 5R with 189W;
Color temperature: 8000K;
Average lifetime: 2000 hours;
Color system: One color wheel with 14 different inner color fitters plus white.
Color fitters can be changed;
Gobo system: One fixed Gobo wheel with 17different inner gobos with shaking function;
Lens: 3pcs PHILIPS lens group with electronics zooming 0~3.8 degree
Strobe: Support mechanical strobe & adjustable speed stobe effect;
Prism: 8-faced prism with rotation;
Frost: 0%~100% linear frost;
Beam angle: 0° ~8 °;
Control mode: DMX512 signal control with 3 pin interfaces & LCD display with 16CH;
Ballast : Electronics ballast and AC/DC power supply. Power factor is more than 99%, THD<20%;
Head movement: Horizontal: 540°, 8bit/16bit precision scanning with auto position correction; Vertical: 270°, 8bit/16bit precision scanning with auto position correction;
Environment temperature: -15° C ~45° C;
Shell material: Aluminum alloy composites plastic, IP20;
Package size: 523*337*511mm;
Gross weight: 19KG
Applicaiton: UP-B200M moving head light is a best choice for stage lighting of TV Studio, theater, opera house,
auditorium, fashion T stage,  vocal concert, club, disco at present with good quality light and small size.
It is brighter than beam 300. It is 100% high copy Claypaky.

Production
16 / 24 Prism 5r 200W Beam Moving Head Light
Channel Function
16 20
CH1 CH1 Color wheel
CH2 CH2 Strobe
CH3 CH3 Dimmer
CH4 CH4 Gobo wheel
CH5 CH5 Prism
CH6 CH6 Prism rotation
CH7 CH7 Retain
CH8 CH8 Frost
CH9 CH9 Focus
CH10 CH10 Pan fine
CH11 CH11 Tilt
CH12 CH12 Tilt fine
CH13 CH13 Retain
CH14 CH14 Reset
CH15 CH15 Lamp on/off
CH16 CH16 Pan/tilt speed
  CH17 Color wheel speed
  CH18 Reset
  CH19 Dimmer/prism/frost speed
  CH20 Gobo wheel speed
