Basic Info.
Model NO.
AMD8805
IP Rating
IP20
Certification
CE, RoHS
Voltage
100-240V
Color
14 Colors + White
Gobos
10 Gobos + 1 Dynamic Gobo + Open
Prism
8-Facet Prism and 24-Facet Prism
Function
with Rdm Function
Transport Package
Carton or Flightcase
Specification
L310*W260*H500mm
Trademark
AOMEIDI
Origin
China
Production Capacity
5000pieces/Month

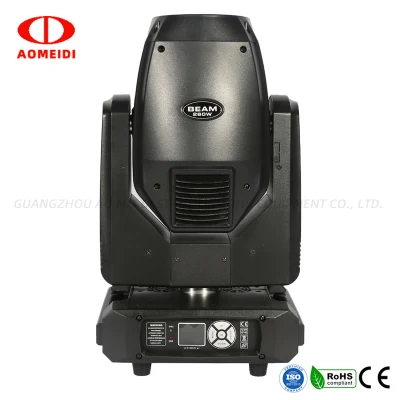

Product Description
| Voltage/frequency: | AC100V-240V, 50/60Hz. |
| Rated power: | 360W / 400W. |
| Light source: | 250W / 260W / 280W / 295W / 300W Osram or Philips bulb(optional Chinese bulb). |
| Beam angle: | 2.5°. |
| Control channels: | 20/16 standard DMX channels. |
| Operating modes: | sound control, self-propelled, master-slave, DMX512. |
| Color wheel: | 14 colors + white, linear color conversion, and rainbow effect. |
| Gobo wheel: | 10 gobos + 1 dynamic gobo + open. |
| Prism: | standard 8-facet prism and 24-facet prism (optional 16-facet, 48-facet prism), bi-directional rotation at different speeds, prism indexing, and prisms can be superimposed into a composite effect. |
| Focus: | DMX linear high-definition focus, the distance, and sharpness of the gobo can be adjusted freely. |
| Strobe: | Double-chip high-speed strobe, 1-15 times/sec ultra high-speed strobe effect. |
| Frost: | Built-in frost filter can generate a wash effect, a colorful effect. |
| Pan/Tilt movement: | Pan 540°, Tilt 270°, 8 or 16-bit fine resolution, automatic Pan & Tilt position correction. Fast speed, smooth movement, no shake, low noise, accurate positioning. |
| Display interface: | LCD, switchable Chinese or English. |
| RDM function: | remote device management. |
| Housing: | high-temperature-resistant and flame-retardant engineering plastics and alloy materials. |
| Protection rating: | IP20. |
| Function: | The bulb can be lit by the controller, with a time delay switch function. |
| N.W: | 14.5kg. |
| Carton package size: | L450 * W420 * H550mm. G.W: 19kg. |
| Flight case package size: | 74 * 47 * 74cm.(2PCS) G.W: 55kg.(2PCS) |
Established in 2006, Guangzhou AOMEIDI Lighting Equipment Co., Ltd is located in Caifu lndustrial Park, No 33 Jinghu Road, Xinya Street, Huadu District, Guangzhou, China. lt is a national high-tech enterprise specializing in the development, manufacturing, sales, engineering and service of intelligent stage performance, cultural landscape and urban lighting.
Since its inception, we have been adhering to the philosophy of "Quality-oriented, making lights with heart", and constantly improving and upgrading our products and services. After more than ten years of hard work, today's AOMElDI has won the recognition of customers through advanced technology, good quality, stable performance, and perfect service. lt has been applied on many large-scale art performances, TV stations, studios, bars, wedding celebrations, etc.. and also undertaken OEM business for world-famous brands.AOMEIDI products have been used in the 2008 Beijing Olympic Games Bicycle Venues, the 2010 Shanghai WorldExpo Macau Pavilion, BeijingStar TV Program Production Base, Gansu Provincial TV Station, and other well-known projects, as well as pubs like Soho Bar, True Color Bar, Hutaoli Music Entertainment Venues!
AOMElDl is the executive vice president of the Hunan Chamber of Commerce Performing Arts Equipment Committee in Guangdong Province. The company has passed the IS09001:2015 quality management system certificate. An intellectual Property Management System certificate. Products passed EU CE certification and ROHS environment certification, and have obtained the Top ten competitive brands' the famous Chinese brands, advanced enterprise of national patent technology, the state authority to detect quality assured products, and the top 10 aggressive awards ofHuicong lighting and audio industry and other series of awards. Welcome to visit and give advice, let's create a better future!
