Basic Info.
Model NO.
indoor Wall mount
Feature
Touch Display, With Remote Control, Support TV Function, Custom Made
Optimum Resolution
3840x2160
Type
IPS
Widescreen
Widescreen
Response Time
6ms
3D
Not 3D
Interface Type
HDMI
Installation
Wall Mounted
Touch Screen Type
Capacitive/Infrared
Screen Technology
LCD
Remote Control
with Remote Control
Customized
Customized
Transport Package
Wooden Box
Specification
IPS
Trademark
Customized
Origin
China
HS Code
8471494000
Product Description

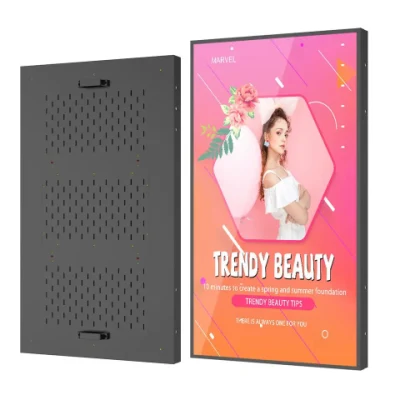

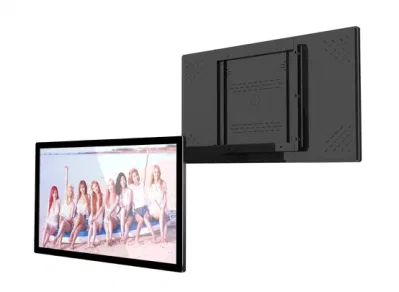

Indoor Wall Mounted Wifi Android tv LCD Touch Screen Monitor Full Color Stretch Bar Display
| SPECIFICATION | |
| Panel size | 15.6inch |
| Whole Size | 409*258mm |
| Screen type | no touch screen type (touch screen optional) |
| Aspect Ratio | 16:9 |
| MAX Resolution | 1920*1080 (small size different) |
| Display color | 16.7M |
| pixe Pitch(mm) | 0.63(H)×0.63(V) |
| Brightness (nits) | 400 cd/m2 |
| Contrast | 3000:1 (different from big size and small size) |
| View angle | 178°/178° |
| Response time | 5ms |
| Life(hrs) | >70,000(hrs) |
| Mainboard | |
| CPU | LONGO 358 (805) (optional) |
| RAM | 1G DDR3 (optional) |
| ROM | 8G SSD (optional) |
| OS | Android 6.0(optional) |
| Input and output | |
| RJ45 | Included(Network version only) |
| 3G / WIFI Module | Included(Network version only) |
| USB | 1 ( USB2.0 interface) |
| SD | 1 (Compatible MMC/MS) |
| CF | 1(optional) |
| L/R audio input | 1 (RCA*2) |
| L/R audio output | 1 (RCA*2) |
| Speaker | 2×5W(9Ω) |
| Video | |
| Color system | PAL/NTSC/SECAM |
| Menu language | Chinese/English( Multiple Language Supported) |
| Power | |
| Power supply | AC100~240V 50 /60 HZ |
| Maximum power consumption | <=280W |
| Standby power consumption | <5W |
| Color/appearance | White,black,customized |
| Case | Metal case SPCC |
| Installation | Wall mounting ( floor standing optional) |
| Quality Standard | ISO9001,CCC,FCC.CE |
| Detailed Function | |
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
| Audio format | Wave/MP3/WMA/AAC |
| Image format | JPEG/BMP/TIFF/PNG/GIF |
| Image resolution | 480P/720P/1080P |
With the help of LED backlight technology, not only the brightness of LCD is improved, but also the degree of color restoration and service life are greatly improved. Optical film, brightening polarizer, and the use of high light transmittance LCD panel can significantly improve the brightness of the LCD screen, greatly increase the display optical effect and anti-vibration performance of the display screen, the realization of the LCD screen in the sunlight clearly visible.
With the widespread use of LCD LCD screen, LCD screen is not only used indoors, but also often used in the outdoors, highlighting LCD screen if applied to the outdoors not only has strict requirements on screen brightness, but also needs to adapt to the all-weather complex external environment. The outdoor LCD display produced by us is a scientific and industrial display, with LED replacing CCFL as the backlight strip. With the help of LED backlight technology, not only the brightness of LCD is improved, but also the degree of color restoration and service life are greatly improved. Optical film, brightening polarizer, and the use of high light transmittance LCD panel can significantly improve the brightness of the LCD screen, greatly increase the display optical effect and anti-vibration performance of the display screen, the realization of the LCD screen in the sunlight clearly visible.
Sunlight readable screen panel
High brightness by 2500nits
Self-developed LED backlighttechnology
LG liquid display glass
24/7 working time
Places of use
shopping malls, milk tea shops, clothing stores, buildings, hospitals, banks, etc.
Why choose us?
1.Public places have a strong visual impact and fast information dissemination. Advertising machines are set up in crowded areas to promote products, establish a corporate image and improve the exposure rate for enterprises. It is direct and simple enough to attract large advertisers all over the world and even often becomes a city building.
2.The LCD advertising machine with a long release time and 24-hour operation is a kind of continuous and uninterrupted media. This function makes it easier for the audience to see. It is based on the needs of customers and has similar advantages to the always-online media. However, in the virtual world, the audience needs a series of preconditions to access, while the outdoor media gives full play to this advantage because of the characteristics of another physical space.
3. Compared with traditional print advertising, the solution of LCD advertising machine adopts digital information transmission, which saves a lot of printing costs, shortens the waiting time, and meets the requirements of green environmental protection. The information content can be updated and released at any time.
4. Animation advertising is more likely to produce amazing effects. In real life, video broadcasting will attract more attention. Compared with traditional static images, the use of various forms of performance allows advertisers to get more attention when broadcasting promotions, relevant information, and news, which is more prominent than the effect of print advertising. Compared with TV advertising, it has the first function - price advantage.
5. The LCD advertising machine can act as an additional salesperson or customer service representative. When the relevant personnel is busy, this setting can be used to allow the LCD advertising machine to display specific content to the customers waiting for service, which not only explains the boredom of the customer waiting process to a certain extent and enhances the cost experience, but also promotes the information through relevant information.
1.Public places have a strong visual impact and fast information dissemination. Advertising machines are set up in crowded areas to promote products, establish a corporate image and improve the exposure rate for enterprises. It is direct and simple enough to attract large advertisers all over the world and even often becomes a city building.
2.The LCD advertising machine with a long release time and 24-hour operation is a kind of continuous and uninterrupted media. This function makes it easier for the audience to see. It is based on the needs of customers and has similar advantages to the always-online media. However, in the virtual world, the audience needs a series of preconditions to access, while the outdoor media gives full play to this advantage because of the characteristics of another physical space.
3. Compared with traditional print advertising, the solution of LCD advertising machine adopts digital information transmission, which saves a lot of printing costs, shortens the waiting time, and meets the requirements of green environmental protection. The information content can be updated and released at any time.
4. Animation advertising is more likely to produce amazing effects. In real life, video broadcasting will attract more attention. Compared with traditional static images, the use of various forms of performance allows advertisers to get more attention when broadcasting promotions, relevant information, and news, which is more prominent than the effect of print advertising. Compared with TV advertising, it has the first function - price advantage.
5. The LCD advertising machine can act as an additional salesperson or customer service representative. When the relevant personnel is busy, this setting can be used to allow the LCD advertising machine to display specific content to the customers waiting for service, which not only explains the boredom of the customer waiting process to a certain extent and enhances the cost experience, but also promotes the information through relevant information.
