Description of advantages:
Application with mounting by mode of double head and double working area, the speed reaches the fastest in the line.

High precision compensation system is adopted to realize precision compensation and correction in device mounting motion.

Single-track and double-track mounting is supported, with higher efficiency, wide range of adaptation and high compatibility. Supporting several specifications of materials to be mounted at the same time; accuracy, stability and high speed reaching the international advanced level.

Product features:
1. The nozzle adopting linear motor and the development of high-speed nozzle system has realized the high-speed mounting.
2. High efficiency and energy saving.
3. The air path of nozzle control is by bus module installation, which can load and unload the nozzle quickly, and handle and maintain the nozzle quickly in view of special abnormal situations to reduce time loss.
4. Moving cable adopts collapsible flexible moving cable, long service life and high stability can greatly reduce the electrical line abnormal and fault.
5. X and Y adopt linear motor with fast response and small friction. Application industry: smart home appliances, intelligent lighting, automotive electronics, avionics, communications and other industries.

Product Parameter

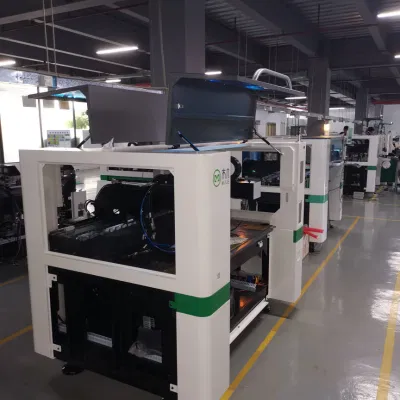

Machine model: High precision multi-functional chip mounter H832
Positioning method: Flying vision + stage vision
Shaft rods: 2 arms * 16 nozzles
Optimal mounting:
speed 88000CPH
Corresponding component:
0201~L6mm*W 6mm*T3 mm
SOP, QFP, BGA and etc.
PCB range:
Double track: MAX510mm(L)×300mm(W) ~ MIN 50mm(L)×50mm(W) H:0.5~4.5mm
Single track: MAX510mm(L)×600mm(W) ~ MIN 50mm(L)×50mm(W) H:0.5~4.5mm
If the thickness of objects less than 0.5mm requires special treatment measures, please contact our company in advance.
Feeder:8mm-64 stations
Optimal mounting accuracy: ±35μ/chip CPK≥1.0
Power supply/ air pressure: AC 3 phase,380V/50Hz;0.5MPa-0.7MPa
Rated power:6.5KW
Machine weight: 2200Kg
Overall dimension:2630(L)*1130(W)*2100(H)mm


Guangdong MOJE intelligent equipment Co., Ltd, is a high-tech enterprise specializing in high-end SMT chip mounter machine and SMT intelligent supporting equipment research and development, manufacturing and sales. We set up our SMT machine rese arch and development team in June 2009. We got the major breakthrough after 4 years of research and development, then Guangdong MOJE intelligent equipment Co., Ltd. Was officially born. At present, We mainly focuses on the pick and place machine, providing the overall solution of SMT and whole assembly line equipment, mainly including the printer machine, reflow oven, conveyor machine, AOI and other series products.

Guangdong MOJE intelligent equipment Co., Ltd has two wholly owned subsidiary, Guangdong HZC intelligent technology Co., Ltd. And Jiangsu HZC intelligent technology Co., Ltd., being its manufacturing base. As the first domestic high-tech enterprise which engaged in high-end SMT machine core technology research, Moje represents the highest technical level in pick and place machine currently in China, product technology achieve the international advanced level, with about hundreds of independent intellectual property rights of invention patent, utility model patents and software copyright.

Moje always is committed to philosophy of customer first and continuous improvement, taking the improvement of Chinese brand and intelligent level of electronic information industry as our responsibility. We provide high quality products and whole solutions for global electronic industry customers with constantly innovation.

Our customers have been around the world, in China, the main customers are in the electronic information industry gathering areas like pearl River delta, Yangtze River Delta and etc. Overseas customers are concentrated in southeast Asia, Latin America, Europe and so on. At present, we havd set up branches in India, Malaysia, Thailand and other countries, our distributors are all over the world.

Moje is also committed to social responsibility and continuous innovation to create value for customers and strive to become a top brand of SMT automation equipment in the world within 10 years.
