Basic Info.
Model NO.
PC-DVR5000VA
Iron Core Shape
C
Power Source
Switching Regulated Power Supply
Application Range
Industrial and Mining Enterprises
Brand
Ttn
Color
Black and White
Popular Market
Russia, Middle East, Eastern Asia
Certificate
CE, ISO:9001, Soncap
Input Voltage
80-270V
Output Voltage
220V+-10%
Delay Time
5-255s
Control
Relay
Transport Package
to Be Packed in Standard Exporting Carton
Specification
CE, ISO: 9001, SONCAP
Trademark
TTN, TINGLANG
Origin
Wenzhou, Zhejiang, China
HS Code
8504401990
Production Capacity
40000PCS/Month
Product Description

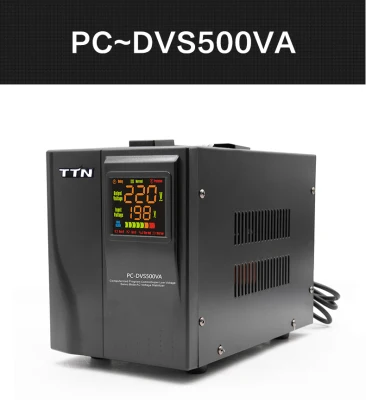

stabilizer for led tv
I. Advantages of our products
1. High technology: Programmed control computerized
2. Unique design: LED display which can show all protection functions.
3. Quality ensurance: Every spare parts is made by ourselves, for example, transformer, PCB.
4. Perfect protection function: Over/low voltage protection, over-heating, over-loading protection
5. High efficiency: More than 90%
6. Experienced manufactory: More than 20 years
II. Specifications(technical data):
Model: PC-DVR Series Relay Control single phase
Capacity: 500VA~10kVA
Input voltage: AC150V~270V(A Type); AC135V~270V(B Type); AC105V~270V(C Type); AC80V~270V(D Type) or customize
Output voltage: 220V+/-10%
Remark: Pls kindly check the detail information in following chart
III. Taking part in Overseas fair
Canton Fair
HK Electric Fair
Moscow Electric Fair
India International Trade Fair
Nigeria Electronic Fair
IV. SERVICE OCCASIONS:
Computer
Test equipment
Lighting equipment
Alarm and security system
X-ray equipment
Medical equipment
Duplicator
Broadcasting equipment
Numeric control machine tool
Industrial robot
Photographic processing equipment
Laboratory instrument
Hi-Fi equipment
I. Advantages of our products
1. High technology: Programmed control computerized
2. Unique design: LED display which can show all protection functions.
3. Quality ensurance: Every spare parts is made by ourselves, for example, transformer, PCB.
4. Perfect protection function: Over/low voltage protection, over-heating, over-loading protection
5. High efficiency: More than 90%
6. Experienced manufactory: More than 20 years
II. Specifications(technical data):
Model: PC-DVR Series Relay Control single phase
Capacity: 500VA~10kVA
Input voltage: AC150V~270V(A Type); AC135V~270V(B Type); AC105V~270V(C Type); AC80V~270V(D Type) or customize
Output voltage: 220V+/-10%
Remark: Pls kindly check the detail information in following chart
| MODEL | PC-DVR500VA | PC-DVRR800VA | PC-DVR1000VA | PC-DVR1500VA | PC-DVR2000VA | |
| PC-DVR3000VA | PC-DVR5000VA | PC-DVR8000VA | PC-DVR10000VA | PC-DVR12000VA | ||
| TECHNOLOGY | RELAY CONTROL SYSTERM+MICRO COMPUTER PROGRAMED CONTROL | |||||
LED DISPLAY | INFORMATION | INPUT VOLTAGE/OUTPUT VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION | ||||
PROTECTION | Over Voltage | Output Voltage≥243±4v | ||||
| Low Voltage | Output Voltage≤188v±4v | |||||
| Over Loading | More Than 120% | |||||
| Over Temperture | 120ºC±10ºC | |||||
| Delay Time | Long time(255 seconds)/Short time(5 seconds) | |||||
| Creepage | ||||||
| Language | English/Russia/Chinese | |||||
| Input Voltage | AC150-270V(A TYPE);AC135-AC270V(B TYPE) AC105-AC270(C TYPE);AC80V-AC270V(DTYPE) | |||||
| Output Voltage | 220+/-10% adjustable | |||||
| Frequency | 50Hz/60Hz | |||||
| Phase | Single phase | |||||
| Efficency | ≥90% | |||||
| Ambient Temperature | -15ºC-45ºC | |||||
| Relative humidity | <95% | |||||
| Waveform distortion | No additional wave from distortion | |||||
| Insulation resistance | Normally more than 2MΩ | |||||
| Power | 500VA | 800VA | 1000VA | 1500VA | 2000VA | |
| Packing size(cm) | 35.8*30.3*42.3 | 35.8*30.3*42.3 | 35.8*30.3*42.3 | 35.8*30.3*42.3 | 39.6*35.3*46.7 | |
| Packing (pcs) | 4 | 4 | 4 | 4 | 4 | |
| G.M(KGS) | 12.33 | 13.25 | 14.51 | 15.27 | 24.66 | |
| Power | 3000VA | 5000VA | 8000VA | 10000VA | 12000VA | |
| Packing size(cm) | 38.6*27.7*29.8 | 38.6*27.7*29.8 | 43.3*27.7*29.8 | 44.2*30.4*37.1 | 44.2*30.4*37.1 | |
| Packing (pcs) | 1 | 1 | 1 | 1 | 1 | |
